Diagrams

Tools

The following tools may be used to create diagrams, whereby only Draw.IO is recommended.

Draw.IO

Draw.IO is our recommended tool to create diagrams.

The diagram files must be stored as PNG including metadata using *.drawio.png as file ending. The file ending indicates that the PNG includes metadata and it can be reopened and changed in Draw.IO.

All descriptions and templates in this guide are based on Draw.IO.

PlantUML

PlantUML is not recommended due to several drawbacks:

  • Frequently incompatible changes between PlantUML versions.

  • Layouting larger diagrams is very tricky.

  • Difficult to adhere to this guideline in terms of colors, shapes, arrow types, etc.

  • Rendering takes time when building the documentation.

However, PlantUML is supported for this documentation.

Rules

Note

This guideline is based on the Unified Modeling Language. It highlights the most important aspects for the diagrams and specifies some extra rules like colors for safety and security elements. Refer to the UML standard for more details about modelling diagrams.

Abstraction and Size

There are no restrictions regarding the level of abstraction or size. But try to keep the diagrams as small as possible:

  • Only add elements which are really necessary for the intended purpose of the diagram.

  • Do not mix several layers of abstraction.

This makes the diagrams easier to read, reduces the effort of drawing and the likelihood of becoming outdated is less.

Tailoring and Customization

Follow this guideline as close as possible to ensure consistency regarding style, colors, etc. This makes the diagrams more readable and reduces misunderstandings when interpreting them.

But a guideline cannot cover all special use cases in a project, so it is explicitly allowed to add / change rules within a project. Note, that every customization must be explained in a Legend like changing colors, using different shapes.

Almost all colors defined in this guide are taken from the default palette of Draw.IO to facilitate the creation of diagrams. For other tools, use the color codes specified below.

Colors can increase the readability. But keep in mind, that some people have problems to differentiate between colors or cannot see colors at all. Do not rely only on colors, but add additional information to the diagrams if reasonable, e.g. Stereotypes.

Legend

A legend is not needed if this guideline is followed or common UML practices are used. But whenever a custom element or style is used, add a legend.

The legend only needs to include added and changed elements, it does not need to repeat this guide.

Diagram Properties

Diagrams with transparent background might not be rendered as intended. Lines directly on the edges of the diagrams might be hard to read. To avoid these problems, use the following diagram settings:

Background

#FFFFFF

Margin

10 px

Text

The standard text is defined with the following attributes:

Text Color

#000000

Background Color

Transparent

Font

Helvetica

Size

12 pt

Style

regular (not bold, italic, etc.)

Some elements have their own text specifications (e.g. Annotations). In general, the style of the text does not have any predefined meaning, you are allowed to change them if reasonable, e.g. to improve the readability or if you want to highlight important information.

Standard Shapes

Style

Shapes can be black, white or any shade of grey. The exact color codes are not prescribed in this guideline, they are up to the author and may depend on the tooling and visibility, e.g. when nesting elements. In case the colors have an certain meaning in a diagram, they must be defined in a Legend.

Lines have a thickness of 1 pt.

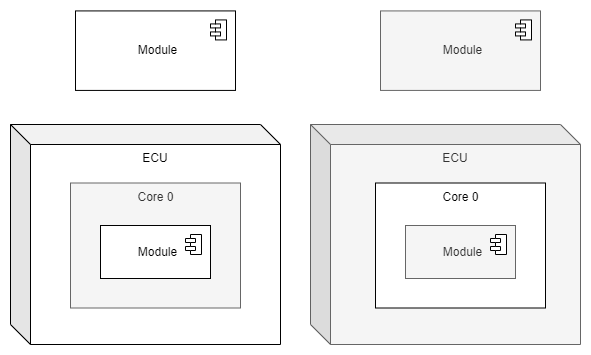

../../_images/shape_colors.drawio.png

Standard colors:

Type

Fill Color

Line Color

Left Side

Top Side

2D White

#FFFFFF

#000000

n/a

n/a

2D Grey

#F5F5F5

#666666

n/a

n/a

3D White

#FFFFFF

#000000

#E5E5E5

#F2F2F2

3D Grey

#F5F5F5

#666666

#DCDCDC

#E9E9E9

Types

Every diagram type has it’s own set of shapes, but the following shapes are common:

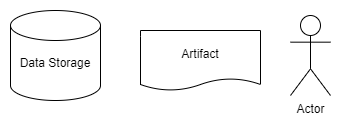

../../_images/shape_common.drawio.png

Shape

Description

Data Storage

Can be any type and any amount of memory, including a one-byte temporary variable, a huge database or calibration data in external EEPROM.

Artifact

An artifact is a physical piece of information that is used or created during the software development process like source code, executable files, written documentation, etc.

Actor

Models a role that a person or external system can take during an interaction with the system. Actors are always outside the system boundary.

The following shapes are intended to collect elements which belong together.

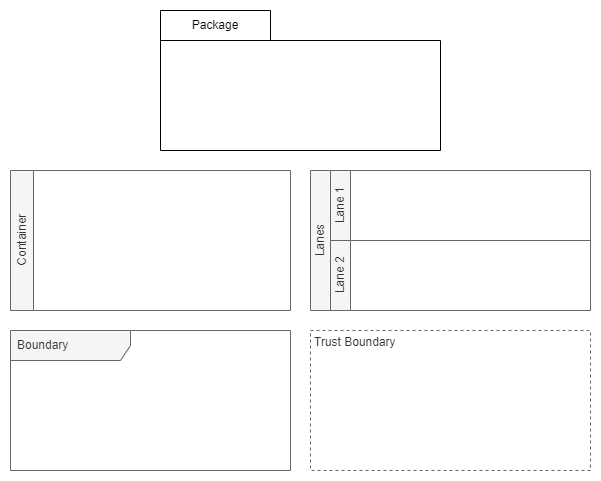

../../_images/shape_collection.drawio.png

Shape

Description

Package

A package bundles modules, classes, etc. which belong locally and often also physically together, for example the BSP (board support package), which has package already in it’s name.

Container

Containers are the most generic collections and can consist of any elements. They can be modelled vertically and horizontally.

Lanes

Lanes are special versions of containers. They are often used to model interactions. Every lane stands for a specific class, module, actors, etc.

Boundary

Used to delimit or separate functions from each other. A special version of boundaries is defined in Sequence Diagram.

Trust Boundary

A boundary where program data or execution changes its level of “trust”, mainly used in security related diagrams.

Stereotypes

Stereotypes are specified with << and >>. They are used to express certain details.

If the drawing tool does not support the shapes or line styles as described in this guideline, stereotypes can always be used as a fallback.

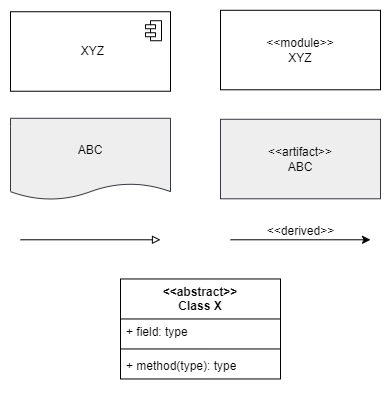

../../_images/stereotypes.drawio.png

Safety and Security

If ASIL or CAL are important for a diagram, the elements are colored as follows:

../../_images/fusa_sec.drawio.png

Level

Fill Color

Line Color

Unknown / to be set later

#D0CEE2

#36393D

ASIL D, ASIL D(x), CAL 4

#FFCCCC

#36393D

ASIL C, ASIL C(x), CAL 3

#FFCC99

#36393D

ASIL B, ASIL B(x), CAL 2

#FFFF88

#36393D

ASIL A, ASIL A(x), CAL 1

#DAE8FC

#36393D

QM

#CDEB8B

#36393D

Not relevant for the diagram

Standard shape colors

Standard shape colors

Risk Levels

In some diagrams, e.g. in the Attack and Fault Tree Diagram, the elements can be colored according their risk level.

../../_images/risk.drawio.png

Level

Fill Color

Line Color

Critical

#FF7777

#36393D

High

#FFCCCC

#36393D

Medium

#FFCC99

#36393D

Low

#FFFF88

#36393D

Very Low

#CDEB8B

#36393D

Connectors

Every diagram type has it’s own set of connectors, but they have the following rules in common:

Color

#000000

Thickness

1 pt

Line types

  • An unspecified relationship is represented by a solid line.

  • A control flow relationship is also represented by a solid line, but with an arrowhead.

  • The data flow connector has an arrowhead as well, but is represented by a dashed line.

  • Notes are connected with a dashed line without an arrowhead.

Angles

  • It is recommended to draw lines at 90 degree angles with rounded corners. Depending on the diagram this can be easier to read and avoid ambiguities. But it is also allowed to draw lines with sharp corners.

  • The exception are notes, which are connected with direct lines.

Labels

  • If needed, label the connectors to make the relationship clearer.

  • Put the labels close to the line to avoid ambiguities.

  • Avoid putting the label on the line, which is hard to read.

  • A multi-line label should be positioned so that the line does not cover the letters.

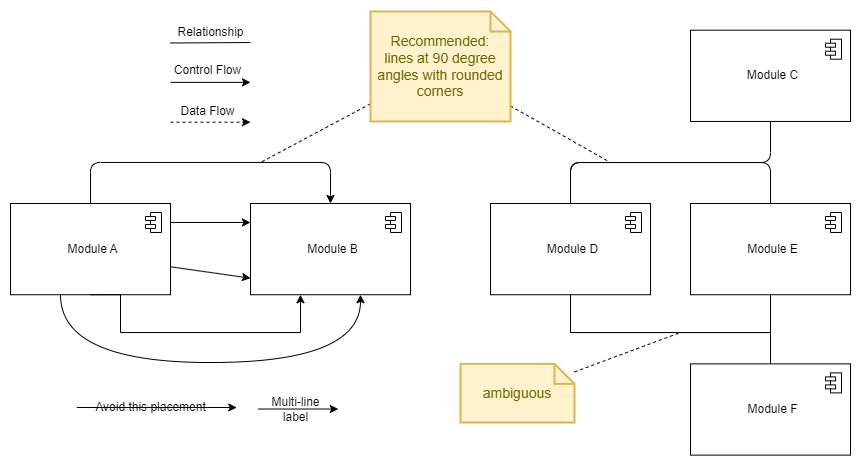

../../_images/connectors.drawio.png

Annotations

Note

Contains any textual content. It is connected to the to-be-annotated element with a straight dashed line.

Property

Circle or ellipse element with a short textual string, e.g. “ABC”, “reuse” or “3rdparty”. Properties are not unique.

ID

Rectangle containing an ID. IDs are unique, so that the elements can be unambiguously referenced later.
../../_images/annotations_types.drawio.png

Connections can also have properties or IDs. Depending on the context, it makes a difference where they are placed. E.g. a data flow connector can be annotated at the beginning (write), at the end (read) or at the middle of the connector (transmission). These annotations can be put on the line (unlike textual labels with transparent background) or close next to it.

../../_images/annotations_connections.drawio.png

The following overview shows our standard annotations. In contrast to the standard shapes, the colors are not grey-scale to increase the readability. To avoid mixing up the different types accidentally, the IDs must be prefixed as shown below. Optionally, a space after the prefix can be added.

Examples: SR123 in brown annotates a shared resource, ID p1 in blue specifies an ID to be able to uniquely identify a diagram element.

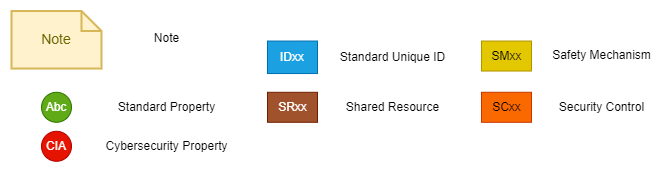

../../_images/annotations_model.drawio.png

Type

Text Color

Fill Color

Line Color

Note

#666600

#FFF2CC

#D6B656

Standard Property

#FFFFFF

#60A917

#2D7600

Cybersecurity Property

#FFFFFF

#E51400

#B20000

Standard Unique ID

#FFFFFF

#1BA1E2

#006EAF

Shared Resource

#FFFFFF

#A0522D

#6D1F00

Safety Mechanism

#000000

#E3C800

#B09500

Security Control

#000000

#FA6800

#C73500

Types

On the following sub-pages you can always find a diagram model and an example. The examples are Draw.IO files with two tabs: the example itself and the diagram model. You can download the files and use them as a starting point / template.

All rules mentioned above apply to these types, like how to model connections or annotations.
