doip - Diagnostics Over IP

Overview

Diagnostics over IP (DoIP) serves as a transport protocol for diagnostic services, e. g. for Unified Diagnostics Services (UDS). It is used to transport UDS messages over IP networks in a standardized way. DoIP is specified in ISO 13400-2. This abstracts the actual transport layer and allows the usage of logical diagnostic addresses instead to communicate with different entities. For security, DoIP can be used on top of TLS.

Features

The module currently provides a DoIP server implementing DoIP version 2 as per ISO 13400-2:2012.

Architecture

The module provides a DoIP server implementation for discovery and transport of UDS messages over IP networks. The server functionality can be found in the server subdirectory. Functionality that is common across the module is found in the common subdirectory.

The server implements DoIP discovery by offering classes to receive Vehicle Identification Requests and send Vehicle Identification Responses back to clients as well as broadcast Vehicle Announcement Messages. The class handling this is DoIpServerVehicleIdentificationService.

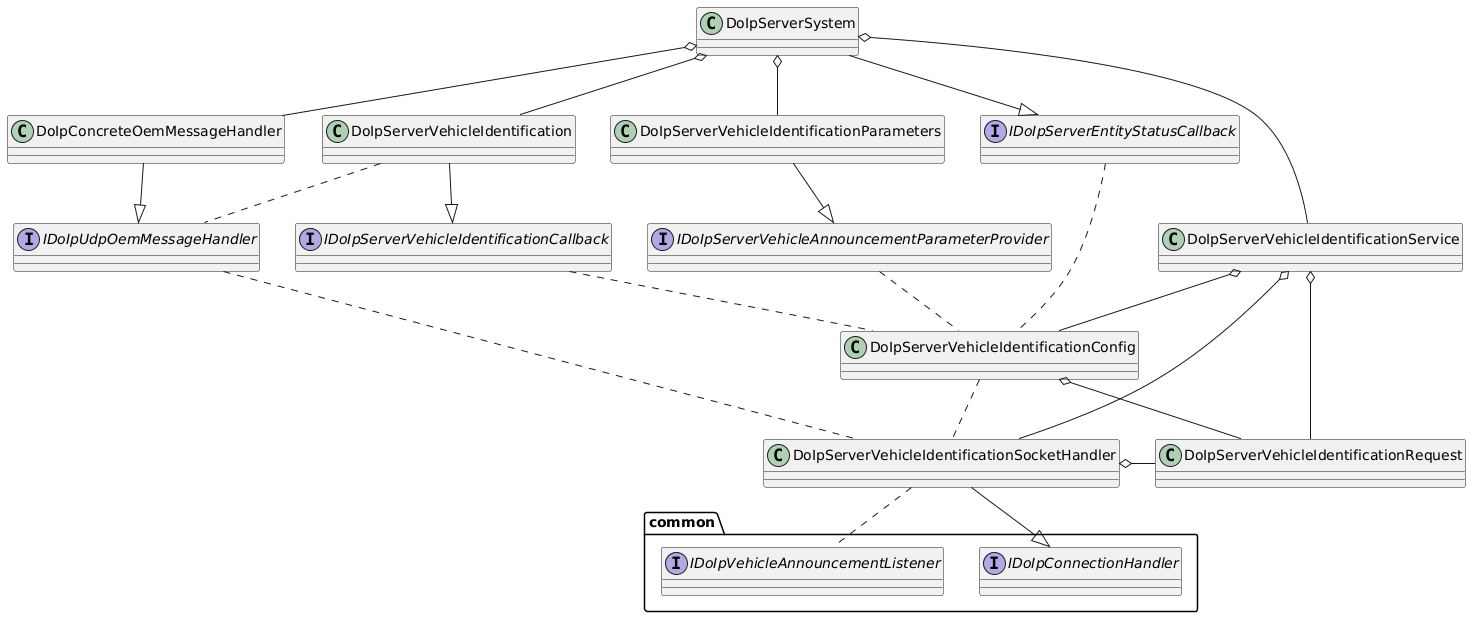

Complete class diagram (DoIP server, identification part):

@startuml class DoIpServerSystem class DoIpServerVehicleIdentificationService interface IDoIpServerEntityStatusCallback class DoIpServerVehicleIdentificationParameters class DoIpServerVehicleIdentification class DoIpConcreteOemMessageHandler class DoIpServerVehicleIdentificationSocketHandler class DoIpServerVehicleIdentificationRequest class DoIpServerVehicleIdentificationConfig interface IDoIpServerVehicleAnnouncementParameterProvider interface IDoIpServerVehicleIdentificationCallback interface IDoIpUdpOemMessageHandler DoIpServerSystem o-- DoIpServerVehicleIdentificationService DoIpServerSystem --|> IDoIpServerEntityStatusCallback DoIpServerSystem o-- DoIpServerVehicleIdentificationParameters DoIpServerSystem o-- DoIpServerVehicleIdentification DoIpServerSystem o-- DoIpConcreteOemMessageHandler DoIpServerVehicleIdentificationService o-- DoIpServerVehicleIdentificationSocketHandler DoIpServerVehicleIdentificationService o-- DoIpServerVehicleIdentificationRequest DoIpServerVehicleIdentificationService o-- DoIpServerVehicleIdentificationConfig DoIpServerVehicleIdentificationSocketHandler o- DoIpServerVehicleIdentificationRequest DoIpServerVehicleIdentificationConfig o- DoIpServerVehicleIdentificationRequest DoIpServerVehicleIdentificationParameters --|> IDoIpServerVehicleAnnouncementParameterProvider DoIpServerVehicleIdentification --|> IDoIpServerVehicleIdentificationCallback IDoIpServerEntityStatusCallback .. DoIpServerVehicleIdentificationConfig IDoIpServerVehicleAnnouncementParameterProvider .. DoIpServerVehicleIdentificationConfig IDoIpServerVehicleIdentificationCallback .. DoIpServerVehicleIdentificationConfig DoIpServerVehicleIdentification .. IDoIpUdpOemMessageHandler DoIpConcreteOemMessageHandler --|> IDoIpUdpOemMessageHandler DoIpServerVehicleIdentificationConfig .. DoIpServerVehicleIdentificationSocketHandler IDoIpUdpOemMessageHandler .. DoIpServerVehicleIdentificationSocketHandler package "common" { interface IDoIpConnectionHandler interface IDoIpVehicleAnnouncementListener DoIpServerVehicleIdentificationSocketHandler --|> IDoIpConnectionHandler DoIpServerVehicleIdentificationSocketHandler .. IDoIpVehicleAnnouncementListener } @enduml

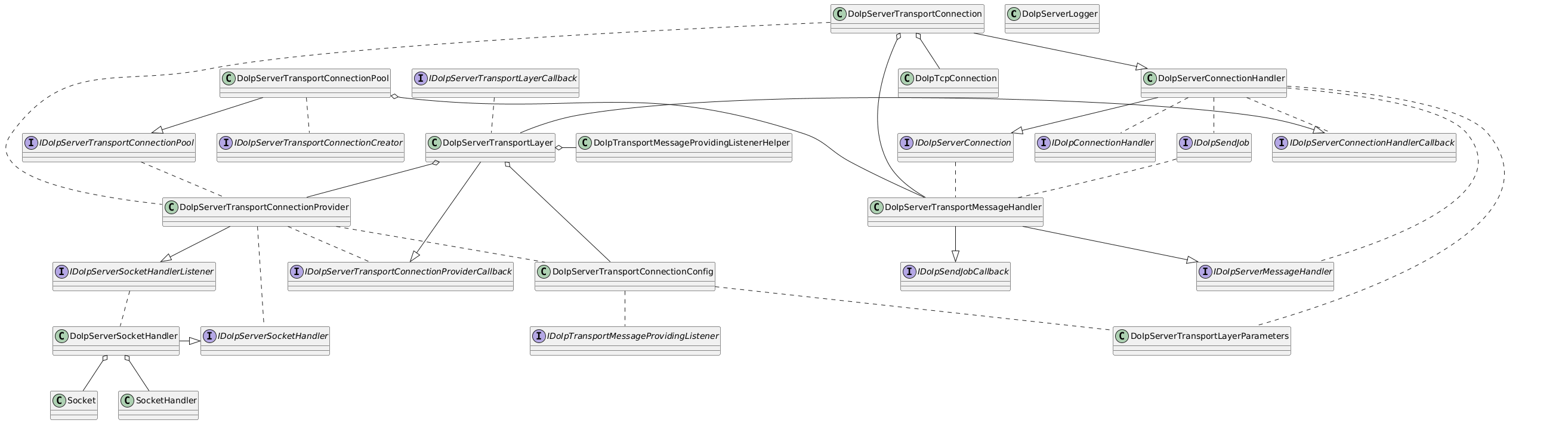

Complete class diagram (DoIP server, transport part):

@startuml class DoIpServerLogger class DoIpServerTransportConnectionPool class DoIpServerTransportConnection interface IDoIpServerTransportConnectionCreator interface IDoIpServerTransportConnectionPool class DoIpServerTransportMessageHandler class DoIpTcpConnection class DoIpServerTransportConnectionProvider class DoIpServerConnectionHandler class DoIpServerTransportLayerParameters class DoIpServerTransportConnectionConfig class DoIpServerTransportLayer interface IDoIpServerTransportConnectionProviderCallback interface IDoIpServerConnectionHandlerCallback interface IDoIpConnectionHandler interface IDoIpSendJob interface IDoIpServerConnection interface IDoIpServerMessageHandler interface IDoIpSendJobCallback interface IDoIpTransportMessageProvidingListener class DoIpTransportMessageProvidingListenerHelper interface IDoIpServerTransportLayerCallback interface IDoIpServerSocketHandler interface IDoIpServerSocketHandlerListener class DoIpServerSocketHandler class Socket class SocketHandler class DoIpServerTransportMessageHandler DoIpServerTransportConnectionPool .. IDoIpServerTransportConnectionCreator DoIpServerTransportConnectionPool --|> IDoIpServerTransportConnectionPool DoIpServerTransportConnectionPool o-- DoIpServerTransportMessageHandler DoIpServerTransportConnection o-- DoIpServerTransportMessageHandler DoIpServerTransportConnection o-- DoIpTcpConnection IDoIpServerTransportConnectionPool .. DoIpServerTransportConnectionProvider DoIpServerTransportConnection .. DoIpServerTransportConnectionProvider DoIpServerTransportConnection --|> DoIpServerConnectionHandler IDoIpSendJob .. DoIpServerTransportMessageHandler IDoIpServerConnection .. DoIpServerTransportMessageHandler DoIpServerTransportMessageHandler --|> IDoIpServerMessageHandler DoIpServerTransportMessageHandler --|> IDoIpSendJobCallback DoIpServerTransportConnectionProvider .. IDoIpServerSocketHandler DoIpServerTransportConnectionProvider --|> IDoIpServerSocketHandlerListener IDoIpServerSocketHandlerListener .. DoIpServerSocketHandler DoIpServerSocketHandler -|> IDoIpServerSocketHandler DoIpServerSocketHandler o-- Socket DoIpServerSocketHandler o-- SocketHandler DoIpServerTransportConnectionProvider .. DoIpServerTransportConnectionConfig DoIpServerTransportConnectionConfig .. IDoIpTransportMessageProvidingListener DoIpServerTransportConnectionConfig .. DoIpServerTransportLayerParameters DoIpServerTransportConnectionProvider .. IDoIpServerTransportConnectionProviderCallback DoIpServerConnectionHandler .. IDoIpServerConnectionHandlerCallback DoIpServerConnectionHandler .. IDoIpConnectionHandler DoIpServerConnectionHandler .. IDoIpSendJob DoIpServerConnectionHandler --|> IDoIpServerConnection DoIpServerConnectionHandler .. IDoIpServerMessageHandler DoIpServerConnectionHandler .. DoIpServerTransportLayerParameters DoIpServerTransportLayer -|> IDoIpServerTransportConnectionProviderCallback DoIpServerTransportLayer -|> IDoIpServerConnectionHandlerCallback DoIpServerTransportLayer o-- DoIpServerTransportConnectionProvider DoIpServerTransportLayer o-- DoIpServerTransportConnectionConfig DoIpServerTransportLayer o- DoIpTransportMessageProvidingListenerHelper IDoIpServerTransportLayerCallback .. DoIpServerTransportLayer @enduml

Establishing a Server Connection

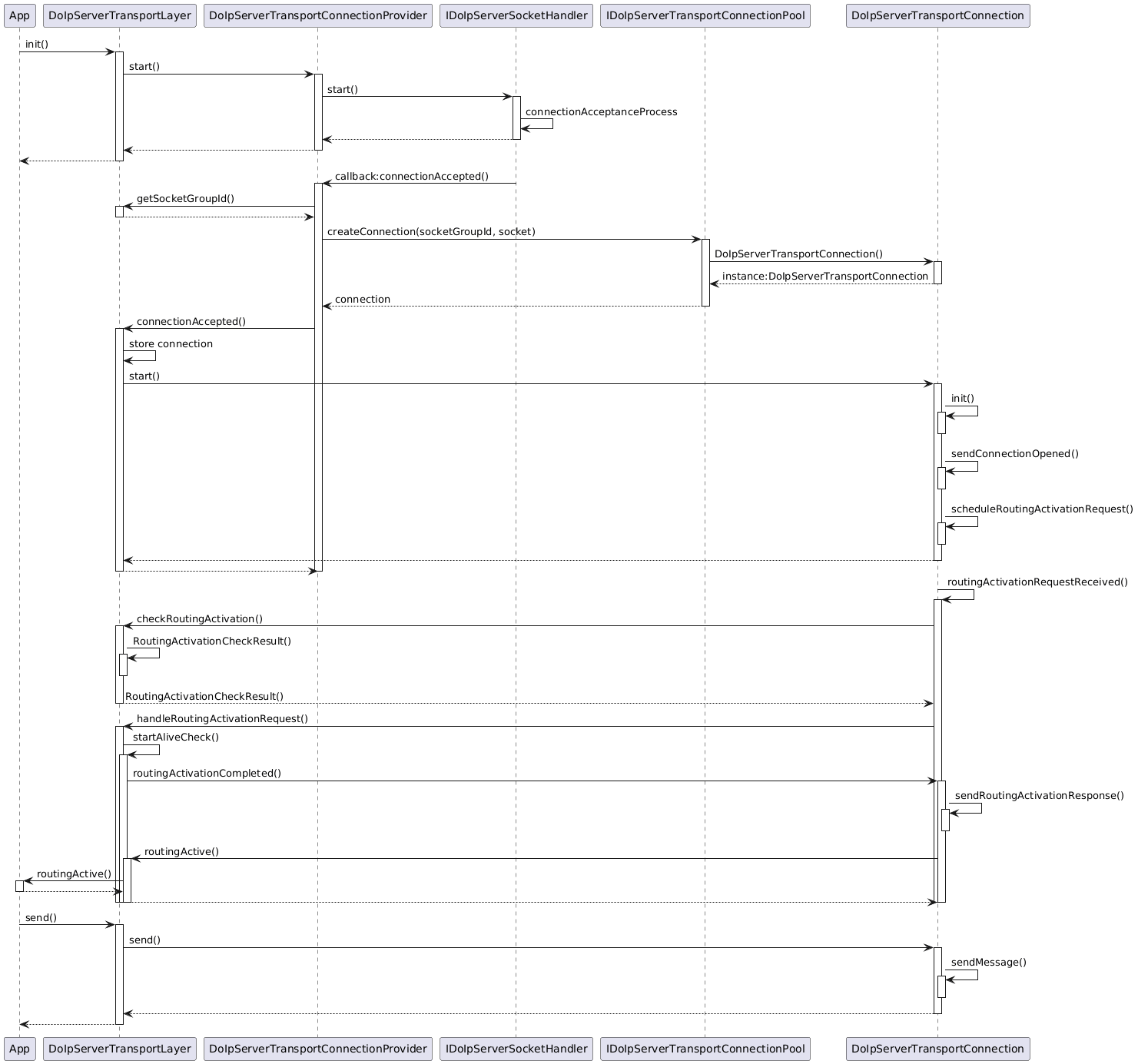

Details establishment of server connections as seen in the unit test DoIpServerTransportLayerTest.TestSendWithConnection.

@startuml DoIpServerTransportLayer.TestSendWithConnection.Sequence participant App as App participant DoIpServerTransportLayer as STL participant DoIpServerTransportConnectionProvider as STConnProv participant IDoIpServerSocketHandler as SSH participant IDoIpServerTransportConnectionPool as STConnPool participant DoIpServerTransportConnection as STConn App -> STL ++ : init() STL -> STConnProv ++ : start() STConnProv -> SSH ++ : start() SSH -> SSH : connectionAcceptanceProcess SSH --> STConnProv -- : STConnProv --> STL -- : App <-- STL -- : SSH -> STConnProv ++ : callback:connectionAccepted() STConnProv -> STL ++ : getSocketGroupId() STL --> STConnProv --: STConnProv -> STConnPool ++ : createConnection(socketGroupId, socket) STConnPool -> STConn ++ : DoIpServerTransportConnection() STConnPool <-- STConn -- : instance:DoIpServerTransportConnection STConnPool --> STConnProv -- : connection STConnProv -> STL ++ : connectionAccepted() STL -> STL : store connection STL -> STConn ++ : start() STConn -> STConn ++ : init() STConn -- STConn -> STConn ++ : sendConnectionOpened() STConn -- STConn -> STConn ++ : scheduleRoutingActivationRequest() STConn -- STConn --> STL -- : STL --> STConnProv -- : STConnProv -- STConn -- STConn -> STConn ++ : routingActivationRequestReceived() STConn -> STL ++ : checkRoutingActivation() STL -> STL ++ : RoutingActivationCheckResult() STL -- STL --> STConn -- : RoutingActivationCheckResult() STConn -> STL ++ : handleRoutingActivationRequest() STL -> STL ++ : startAliveCheck() STL -> STConn ++ : routingActivationCompleted() STConn -> STConn ++ : sendRoutingActivationResponse() STConn -- STConn -> STL ++ : routingActive() STL -> App ++ : routingActive() STL <-- App -- : STConn <-- STL -- : STConn -- STConn -- STL -- STL -- App -> STL ++ : send() STL -> STConn ++ : send() STConn -> STConn ++ : sendMessage() STConn -- STConn --> STL -- App <-- STL -- : @enduml

Interface to the Transport Router

A DoIpServerTransportConnection inherits from DoIpServerConnectionHandler in order to process DoIP protocol messages and it owns one (or several) DoIpServerTransportMessageHandlers. A DoIpServerTransportMessageHandler is responsible for sending and receiving diagnostic messages, to and from a DoIP TCP connection and acts as an interface with a TransportRouter. It references an IDoIpTransportMessageProvidingListener as well as an ITransportMessageProcessedListener. The TransportRouter only implements the ITransportMessageProvidingListener. The class DoIpTransportMessageProvidingListenerHelper implements the IDoIpTransportMessageProvidingListener interface and helps connecting the DoIpServerTransportMessageHandler to the TransportRouter and translating between transport return values and DoIP ACK/NACK codes. Optionally, if there is a transport router available that can handle the doip specific IDoIpTransportMessageProvidingListener, this can also be registered in the Helper and then this class will be used directly without translation of return codes.

For sending, the DoIpTransportMessageHandler passes the data on to the DoIpTcpConnection. Once the data is consumed by the TCP stack, the ITransportMessageProcessedListener::transportMessageProcessed() callback is called to signal that the transport message is no longer accessed.

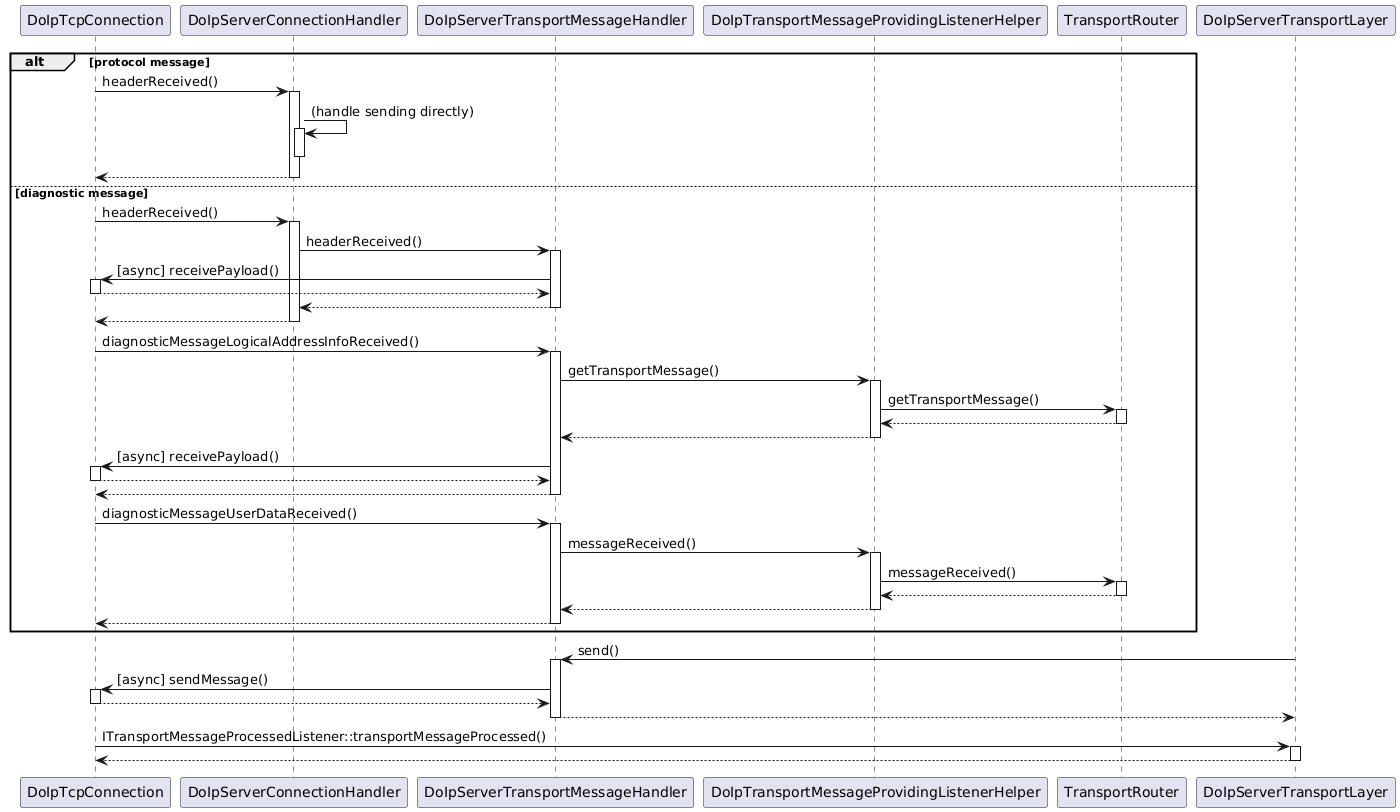

@startuml participant DoIpTcpConnection as TcpC participant DoIpServerConnectionHandler as SCH participant DoIpServerTransportMessageHandler as STMH participant DoIpTransportMessageProvidingListenerHelper as TMPLH participant TransportRouter as TR participant DoIpServerTransportLayer as TL alt protocol message TcpC -> SCH ++ : headerReceived() SCH -> SCH ++ : (handle sending directly) deactivate SCH TcpC <-- SCH -- : else diagnostic message TcpC -> SCH ++ : headerReceived() SCH -> STMH ++ : headerReceived() TcpC <- STMH ++ : [async] receivePayload() TcpC --> STMH -- : SCH <-- STMH -- : TcpC <-- SCH -- : TcpC -> STMH ++ : diagnosticMessageLogicalAddressInfoReceived() STMH -> TMPLH ++ : getTransportMessage() TMPLH -> TR ++ : getTransportMessage() TMPLH <-- TR -- : STMH <-- TMPLH -- : TcpC <- STMH ++ : [async] receivePayload() TcpC --> STMH -- : TcpC <-- STMH -- : TcpC -> STMH ++ : diagnosticMessageUserDataReceived() STMH -> TMPLH ++ : messageReceived() TMPLH -> TR ++ : messageReceived() TMPLH <-- TR -- : STMH <-- TMPLH -- : TcpC <-- STMH -- : end STMH <- TL ++ : send() TcpC <- STMH ++ : [async] sendMessage() TcpC --> STMH -- : STMH --> TL -- : TcpC -> TL ++ : ITransportMessageProcessedListener::transportMessageProcessed() TcpC <-- TL -- : @enduml
