User documentation

The cpp2can module defines an abstraction layer for CAN, enabling higher-level libraries or applications to use CAN independent of hardware-specific implementation details.

Using CAN transceivers

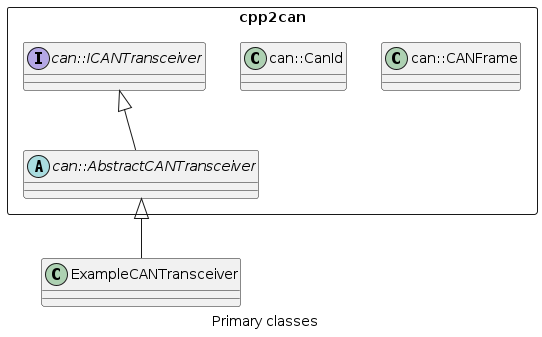

For each CAN transceiver, a concrete implementation of the can::AbstractCANTransceiver class is instantiated. While each concrete implementation will have its own configuration to set up, from the viewpoint of cpp2can the only configuration needed is that each CAN transceiver is assigned a unique Bus ID which is passed to the can::AbstractCANTransceiver constructor.

Once instantiated, higher-level libraries or applications use the can::ICANTransceiver interface to perform operations such as…

• Control the CAN transceiver’s state

• Send frames to the CAN bus as can::CANFrame objects using write()

• Listen for CAN frames received or sent, filtered in various ways (this is described in more detail below).

Example

The following example initializes and opens the interface, then sends a CAN frame to the bus:

void doSomethingWithCAN(can::ICanTransceiver* transceiver)
{
    static const uint8_t msg[] = {0, 1, 2};
    if (transceiver->init() != can::ICanTransceiver::ErrorCode::CAN_ERR_OK)
    {
        return;
    }
    if (transceiver->open() != can::ICanTransceiver::ErrorCode::CAN_ERR_OK)
    {
        return;
    }
    can::CANFrame myFrame;
    myFrame.setId(42);
    myFrame.setPayload(msg, 3);
    transceiver->write(myFrame);
}

ICANTransceiver states

The state diagram below shows the transitions that transceivers implementing ICANTransceiver follow. The method getState() returns the current state.

Note that write() is not allowed in the CLOSED or MUTED states.

The different states allow or block CAN Rx/Tx as shown in the table below.

State	Receive	Transmit
CLOSED	No	No
INITIALIZED	No	Yes
OPEN	Yes	Yes
MUTED	Yes	No

Representing CAN frames

CAN Frames are represented using the can::CANFrame class. A CAN Frame is composed of:

• CAN ID - Both the standard 11-bit identifier format and the extended 29-bit identifier format are supported. can::CanId is a helper class to assist in forming and identifying CAN IDs.

• Data payload - The standard maximum payload length is 8 bytes, but this can be set to 64 bytes, as introduced by CAN FD, by compiling with the preprocessor define CPP2CAN_USE_64_BYTE_FRAMES.

• Timestamp - This is expected to be set by the transceiver on receive or send.

Example

In the example below, two CAN Frames are created. One with a standard 11-bit ID, and the other with a 29-bit extended ID.

static const uint8_t canData[] = {0, 1, 2, 3, 4, 5, 6, 7};
::can::CANFrame standardIdFrame(0x558, canData, 8);
::can::CANFrame extendedIdFrame(can::CanId::Extended<0x17002345>::value, canData, 8);

CAN listeners and filters

The can::ICANTransceiver interface supports adding and removing listeners for…

• CAN frames sent

• CAN frames received

• State changes in the CAN transceiver

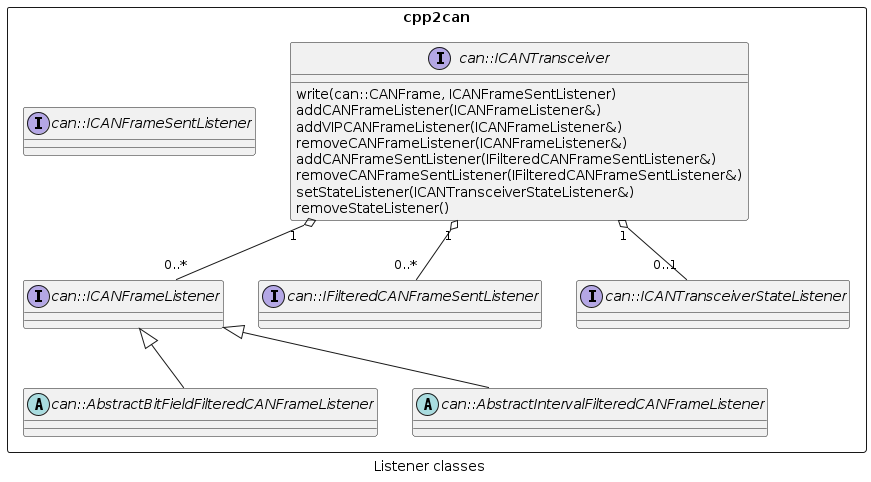

can::ICANFrameSentListener

An object implementing can::ICANFrameSentListener can be passed to the overloaded method can::ICanTransceiver::write() to provide a callback method which will be called when the CAN Frame is transmitted.

can::ICANFrameListener

An object implementing can::ICANFrameListener provides a callback for received CAN Frames that match its filter. These can be added to (or removed from) a list of such objects maintained by the transceiver by calling the following methods of can::ICanTransceiver. Each can::ICANFrameListener object must be configured with a filter before being added to the list.

Method	Description
addCANFrameListener(ICANFrameListener&)	Add ICANFrameListener to the list of CAN Rx listeners
addVIPCANFrameListener(ICANFrameListener&)	Add ICANFrameListener to the front of the list of CAN Rx listeners, so that it will be called first
removeCANFrameListener(ICANFrameListener&)	Remove ICANFrameListener from the list of CAN Rx listeners

can::IFilteredCANFrameSentListener

An object implementing can::IFilteredCANFrameSentListener provides a callback for transmitted CAN Frames that match its filter. These can be added to (or removed from) a list of such objects maintained by the transceiver by calling the following methods of can::ICanTransceiver. Each can::IFilteredCANFrameSentListener object must be configured with a filter before being added to the list.

Method	Description
addCANFrameSentListener(IFilteredCANFrameSentListener&)	Add IFilteredCANFrameSentListener to the list of CAN Tx listeners
removeCANFrameSentListener(IFilteredCANFrameSentListener&)	Remove IFilteredCANFrameSentListener from the list of CAN Tx listeners

can::ICANTransceiverStateListener

Only one can::ICANTransceiverStateListener object is supported by each can::ICanTransceiver object.

Method	Description
setStateListener(ICANTransceiverStateListener&)	Set ICANTransceiverStateListener as the CAN transceiver state listener
removeStateListener()	Unset the CAN transceiver state listener

CAN Filters

Two of the listener interfaces use can::IFilter for filtering CAN frames:

• can::ICANFrameListener is used to capture CAN frames received by the transceiver that match its filter.

• can::IFilteredCANFrameSentListener is used to capture CAN frames sent by the transceiver that match its filter.

can::IntervalFilter

A can::IntervalFilter is used to specify a continuous range of CAN IDs to match in a listener.

can::AbstractStaticBitFieldFilter

A can::AbstractStaticBitFieldFilter is used to specify a selection of CAN IDs as a static bitfield to match in a listener.

can::BitFieldFilter

A can::BitFieldFilter is used to specify a selection of CAN IDs as a dynamic bitfield to match in a listener.

Example

Below is an example of setting up a listener for CAN frames received with CAN IDs in the range 0x300 to 0x400 using ::can::BitFieldFilter.

class ExampleCanListener : public ::can::ICANFrameListener
{
public:
    ExampleCanListener() : _canFilter() { _canFilter.add(0x300, 0x400); }
    ::can::IFilter& getFilter() { return _canFilter; }
    void frameReceived(::can::CANFrame const& frame);
private:
    ::can::BitFieldFilter _canFilter;
};

void ExampleCanListener::frameReceived(::can::CANFrame const& frame)
{
    /*
    This is called when a CAN Frame in the range 0x300 to 0x400 is received.
    An action can be added here.
    */
    return;
}

/* Set up listener */
ExampleCanListener exListener;
transceiver->addCANFrameListener(exListener);
