Memory Pool Management

This unit manages the fixed-size pools used for externally allocated middleware payloads.

It provides allocation routing, pool aggregation, and usage metrics for the memory-backed payload path.

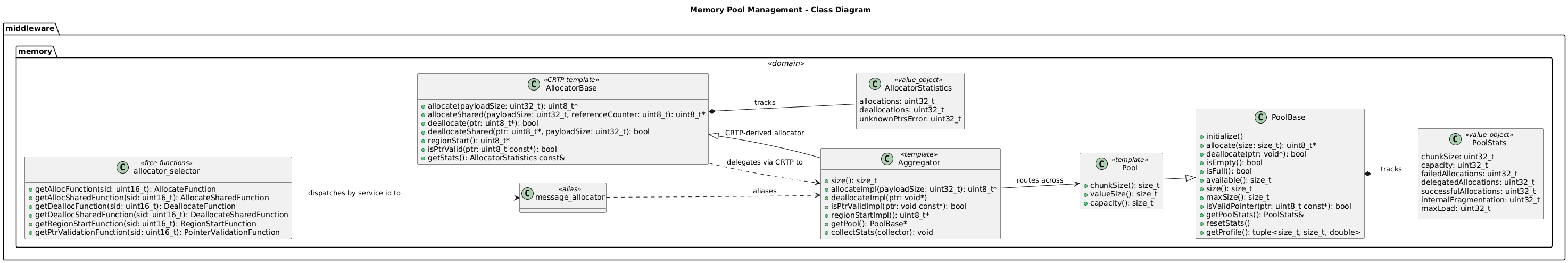

Class Diagram

' ******************************************************************************* ' Copyright (c) 2026 BMW AG ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 ' ******************************************************************************* @startuml memory_pool_management title Memory Pool Management - Class Diagram skinparam classFontSize 14 skinparam shadowing false left to right direction namespace middleware { namespace memory <<domain>> { class AllocatorStatistics <<value_object>> { allocations: uint32_t deallocations: uint32_t unknownPtrsError: uint32_t } class PoolStats <<value_object>> { chunkSize: uint32_t capacity: uint32_t failedAllocations: uint32_t delegatedAllocations: uint32_t successfulAllocations: uint32_t internalFragmentation: uint32_t maxLoad: uint32_t } class AllocatorBase <<CRTP template>> { +allocate(payloadSize: uint32_t): uint8_t* +allocateShared(payloadSize: uint32_t, referenceCounter: uint8_t): uint8_t* +deallocate(ptr: uint8_t*): bool +deallocateShared(ptr: uint8_t*, payloadSize: uint32_t): bool +regionStart(): uint8_t* +isPtrValid(ptr: uint8_t const*): bool +getStats(): AllocatorStatistics const& } class PoolBase { +initialize() +allocate(size: size_t): uint8_t* +deallocate(ptr: void*): bool +isEmpty(): bool +isFull(): bool +available(): size_t +size(): size_t +maxSize(): size_t +isValidPointer(ptr: uint8_t const*): bool +getPoolStats(): PoolStats& +resetStats() +getProfile(): tuple<size_t, size_t, double> } class allocator_selector <<free functions>> { +getAllocFunction(sid: uint16_t): AllocateFunction +getAllocSharedFunction(sid: uint16_t): AllocateSharedFunction +getDeallocFunction(sid: uint16_t): DeallocateFunction +getDeallocSharedFunction(sid: uint16_t): DeallocateSharedFunction +getRegionStartFunction(sid: uint16_t): RegionStartFunction +getPtrValidationFunction(sid: uint16_t): PointerValidationFunction } class message_allocator <<alias>> { } class Aggregator <<template>> { +size(): size_t +allocateImpl(payloadSize: uint32_t): uint8_t* +deallocateImpl(ptr: void*) +isPtrValidImpl(ptr: void const*): bool +regionStartImpl(): uint8_t* +getPool(): PoolBase* +collectStats(collector): void } class Pool <<template>> { +chunkSize(): size_t +valueSize(): size_t +capacity(): size_t } } } AllocatorBase *-- AllocatorStatistics : tracks PoolBase *-- PoolStats : tracks message_allocator ..> Aggregator : aliases Aggregator --|> AllocatorBase : CRTP-derived allocator Aggregator --> Pool : routes across Pool --|> PoolBase allocator_selector ..> message_allocator : dispatches by service id to AllocatorBase ..> Aggregator : delegates via CRTP to @enduml
