Proxy to Skeleton Method Call

This functionality enables a proxy in one cluster to invoke methods on a skeleton located in a different cluster, with asynchronous request-response handling. The same logic applies across different processes and/or threads. The middleware supports both request-response methods (with return values) and fire-and-forget methods (where no response is expected).

Static View

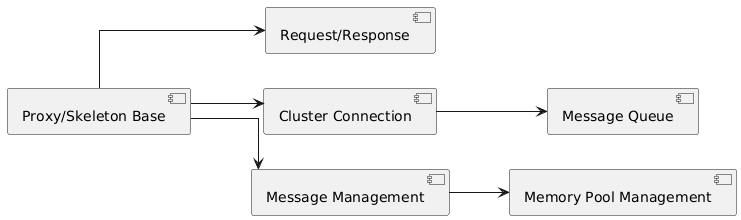

The following software units are involved in proxy-to-skeleton method calls:

  • Transceiver Unit (Proxy side): Initiates requests and manages response callbacks (see Proxy/Skeleton Base for its class diagram)

  • Transceiver Unit (Skeleton side): Receives and processes requests (see Proxy/Skeleton Base)

  • Request/Response Unit: Manages asynchronous request lifecycle, response routing and timeouts (if enabled) (see Request/Response for its class diagram)

  • Message Management Unit: Allocates request/response messages and copy-constructs their payloads

  • Cluster Connection Unit: Routes messages between clusters

  • Message Queue Unit: Stores messages for inter-cluster transport

' ******************************************************************************* ' Copyright (c) 2026 BMW AG ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 ' ******************************************************************************* @startuml left to right direction skinparam linetype ortho component "Proxy/Skeleton Base" as ps_proxy_base component "Request/Response" as ps_request_response component "Cluster Connection" as ps_cluster_connection component "Message Management" as ps_message_management component "Message Queue" as ps_message_queue component "Memory Pool Management" as ps_memory_pool ps_proxy_base --> ps_request_response ps_proxy_base --> ps_cluster_connection ps_cluster_connection --> ps_message_queue ps_message_management --> ps_memory_pool ps_proxy_base --> ps_message_management @enduml

Proxy to skeleton method call component view

Notes:

  • Message flow is asynchronous through a shared memory queue.

  • ProxyMethod manages pre-allocated future slots and invokes callbacks.

  • A uint16_t request id is returned to the application for cancellation.

Dynamic View

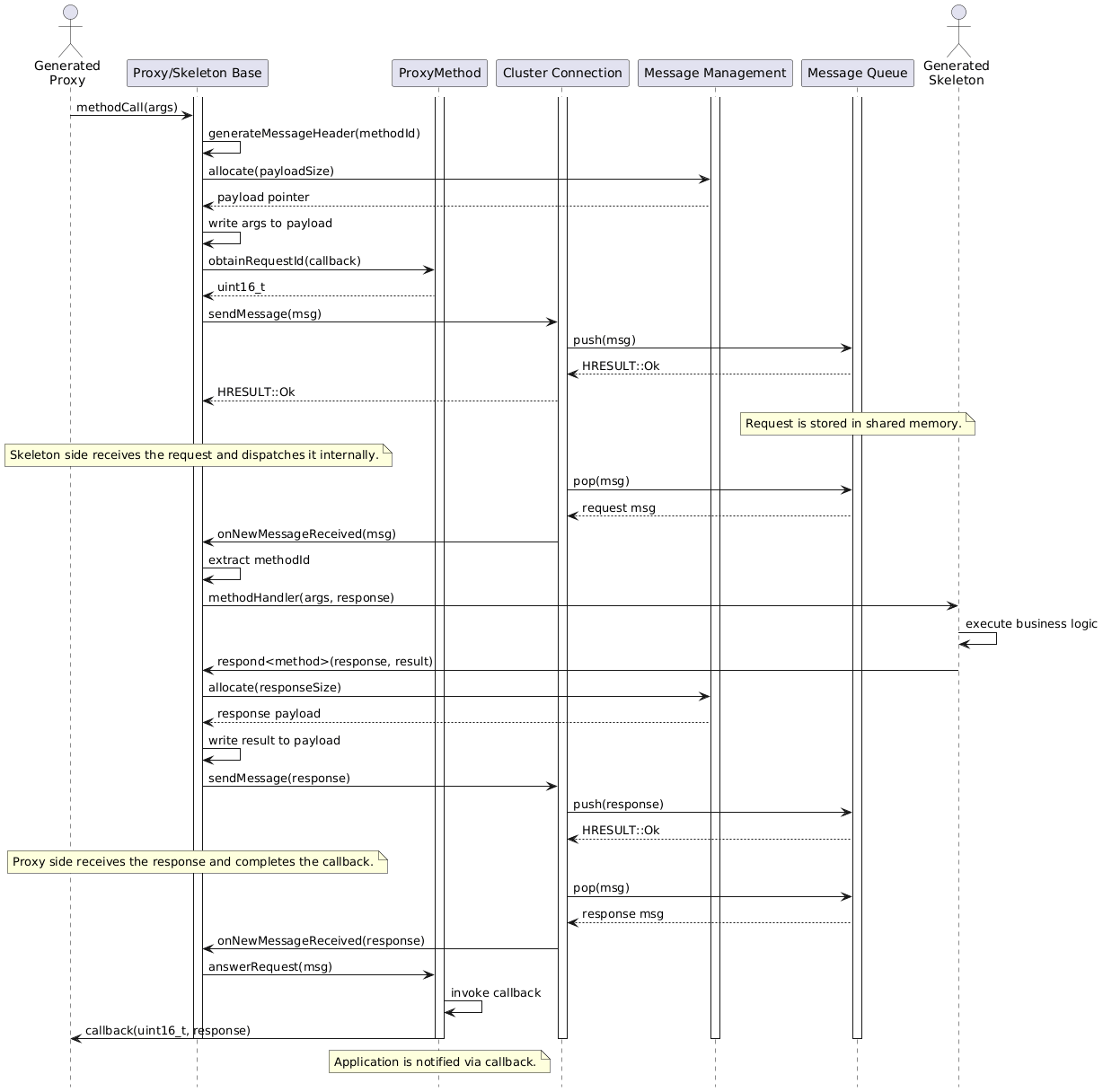

The dynamic view illustrates the runtime interactions for a method call with an asynchronous response.

' ******************************************************************************* ' Copyright (c) 2026 BMW AG ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 ' ******************************************************************************* @startuml hide footbox actor "Generated\nProxy" as generated_proxy participant "Proxy/Skeleton Base" as proxy_skeleton_base_unit participant "ProxyMethod" as request_response_unit participant "Cluster Connection" as cluster_connection_unit participant "Message Management" as message_management_unit participant "Message Queue" as message_queue_unit actor "Generated\nSkeleton" as generated_skeleton activate proxy_skeleton_base_unit activate request_response_unit activate cluster_connection_unit activate message_management_unit activate message_queue_unit generated_proxy -> proxy_skeleton_base_unit : methodCall(args) proxy_skeleton_base_unit -> proxy_skeleton_base_unit : generateMessageHeader(methodId) proxy_skeleton_base_unit -> message_management_unit : allocate(payloadSize) message_management_unit --> proxy_skeleton_base_unit : payload pointer proxy_skeleton_base_unit -> proxy_skeleton_base_unit : write args to payload proxy_skeleton_base_unit -> request_response_unit : obtainRequestId(callback) request_response_unit --> proxy_skeleton_base_unit : uint16_t proxy_skeleton_base_unit -> cluster_connection_unit : sendMessage(msg) cluster_connection_unit -> message_queue_unit : push(msg) message_queue_unit --> cluster_connection_unit : HRESULT::Ok cluster_connection_unit --> proxy_skeleton_base_unit : HRESULT::Ok note over message_queue_unit : Request is stored in shared memory. note over proxy_skeleton_base_unit Skeleton side receives the request and dispatches it internally. end note cluster_connection_unit -> message_queue_unit : pop(msg) message_queue_unit --> cluster_connection_unit : request msg cluster_connection_unit -> proxy_skeleton_base_unit : onNewMessageReceived(msg) proxy_skeleton_base_unit -> proxy_skeleton_base_unit : extract methodId proxy_skeleton_base_unit -> generated_skeleton : methodHandler(args, response) generated_skeleton -> generated_skeleton : execute business logic generated_skeleton -> proxy_skeleton_base_unit : respond<method>(response, result) proxy_skeleton_base_unit -> message_management_unit : allocate(responseSize) message_management_unit --> proxy_skeleton_base_unit : response payload proxy_skeleton_base_unit -> proxy_skeleton_base_unit : write result to payload proxy_skeleton_base_unit -> cluster_connection_unit : sendMessage(response) cluster_connection_unit -> message_queue_unit : push(response) message_queue_unit --> cluster_connection_unit : HRESULT::Ok note over proxy_skeleton_base_unit Proxy side receives the response and completes the callback. end note cluster_connection_unit -> message_queue_unit : pop(msg) message_queue_unit --> cluster_connection_unit : response msg cluster_connection_unit -> proxy_skeleton_base_unit : onNewMessageReceived(response) proxy_skeleton_base_unit -> request_response_unit : answerRequest(msg) request_response_unit -> request_response_unit : invoke callback request_response_unit -> generated_proxy : callback(uint16_t, response) note over request_response_unit : Application is notified via callback. deactivate cluster_connection_unit deactivate proxy_skeleton_base_unit deactivate request_response_unit deactivate message_management_unit deactivate message_queue_unit @enduml

Proxy to skeleton method call sequence

Notes:

  • Depending on its size, the payload is copy-constructed either into the message’s internal buffer or into an external allocation.

  • Fire-and-forget methods follow the same flow but omit the response path: no Future is used, no response message is sent, and the skeleton does not call respond<MethodName>(...). The method is marked with call_semantic: FIRE_AND_FORGET in the service interface description.
