Service Initialization

This functionality enables proxies and skeletons to initialize themselves from the instances database, establishing communication channels.

Static View

The following software units are involved in service initialization:

  • Instance Database Unit: Provides static instance configuration lookup

  • Transceiver Unit (Proxy side): Initializes proxy connections

    (see Proxy/Skeleton Base for its class diagram)

  • Transceiver Unit (Skeleton side): Initializes skeleton connections

    (see Proxy/Skeleton Base)

  • Cluster Connection Unit: Establishes communication channels

' ******************************************************************************* ' Copyright (c) 2026 BMW AG ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 ' ******************************************************************************* @startuml left to right direction skinparam linetype ortho package "Communication Core" as service_initialization_core { component "Proxy/Skeleton Base" as service_initialization_proxy_skeleton_base } package "Communication Infrastructure" as service_initialization_infrastructure { component "Instance Database" as service_initialization_instance_database component "Cluster Connection" as service_initialization_cluster_connection } component "Generated Proxy" as service_initialization_proxy component "Generated Skeleton" as service_initialization_skeleton service_initialization_proxy --> service_initialization_proxy_skeleton_base : initFromDb service_initialization_skeleton --> service_initialization_proxy_skeleton_base : init service_initialization_proxy_skeleton_base --> service_initialization_instance_database service_initialization_proxy_skeleton_base --> service_initialization_cluster_connection @enduml

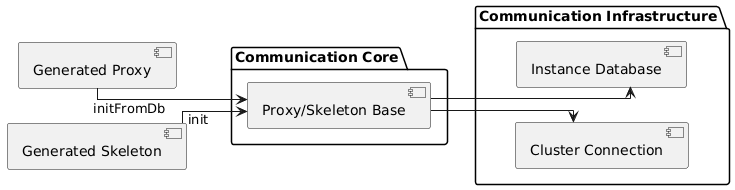

Service initialization component view

Notes:

  • The instance database is compile-time generated from deployment configuration.

  • Each service instance maps to specific cluster connections.

  • Both proxies and skeletons can have multiple cluster connections based on deployment topology.

  • Initialization validates instance IDs and returns error codes on failure.

Dynamic View

The dynamic view illustrates proxy and skeleton initialization sequences with error handling.

Proxy Initialization

' ******************************************************************************* ' Copyright (c) 2026 BMW AG ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 ' ******************************************************************************* @startuml hide footbox actor "Generated\nProxy" as generated_proxy participant "Proxy/Skeleton Base" as proxy_skeleton_base_unit participant "Instance Database" as instance_database_unit participant "Cluster Connection" as cluster_connection_unit activate proxy_skeleton_base_unit activate instance_database_unit activate cluster_connection_unit generated_proxy -> proxy_skeleton_base_unit : initFromInstancesDatabase(instanceId, sourceCluster, dbRange) proxy_skeleton_base_unit -> proxy_skeleton_base_unit : unsubscribe previous connection proxy_skeleton_base_unit -> proxy_skeleton_base_unit : iterate through dbRange proxy_skeleton_base_unit -> instance_database_unit : getInstanceIdsRange() instance_database_unit --> proxy_skeleton_base_unit : instanceIds[] alt instance found in database proxy_skeleton_base_unit -> instance_database_unit : getProxyConnectionsRange() instance_database_unit --> proxy_skeleton_base_unit : connections[] proxy_skeleton_base_unit -> proxy_skeleton_base_unit : find connection matching sourceCluster alt matching connection found proxy_skeleton_base_unit -> cluster_connection_unit : subscribe(proxy, instanceId) cluster_connection_unit -> cluster_connection_unit : register proxy in transceivers cluster_connection_unit --> proxy_skeleton_base_unit : HRESULT::Ok proxy_skeleton_base_unit -> proxy_skeleton_base_unit : store connection reference proxy_skeleton_base_unit --> generated_proxy : HRESULT::Ok else no matching connection proxy_skeleton_base_unit -> proxy_skeleton_base_unit : logError(TransceiverInitializationFailed) proxy_skeleton_base_unit --> generated_proxy : HRESULT::TransceiverInitializationFailed end else instance not found proxy_skeleton_base_unit -> proxy_skeleton_base_unit : logError(TransceiverInitializationFailed) proxy_skeleton_base_unit --> generated_proxy : HRESULT::TransceiverInitializationFailed end deactivate proxy_skeleton_base_unit deactivate instance_database_unit deactivate cluster_connection_unit @enduml

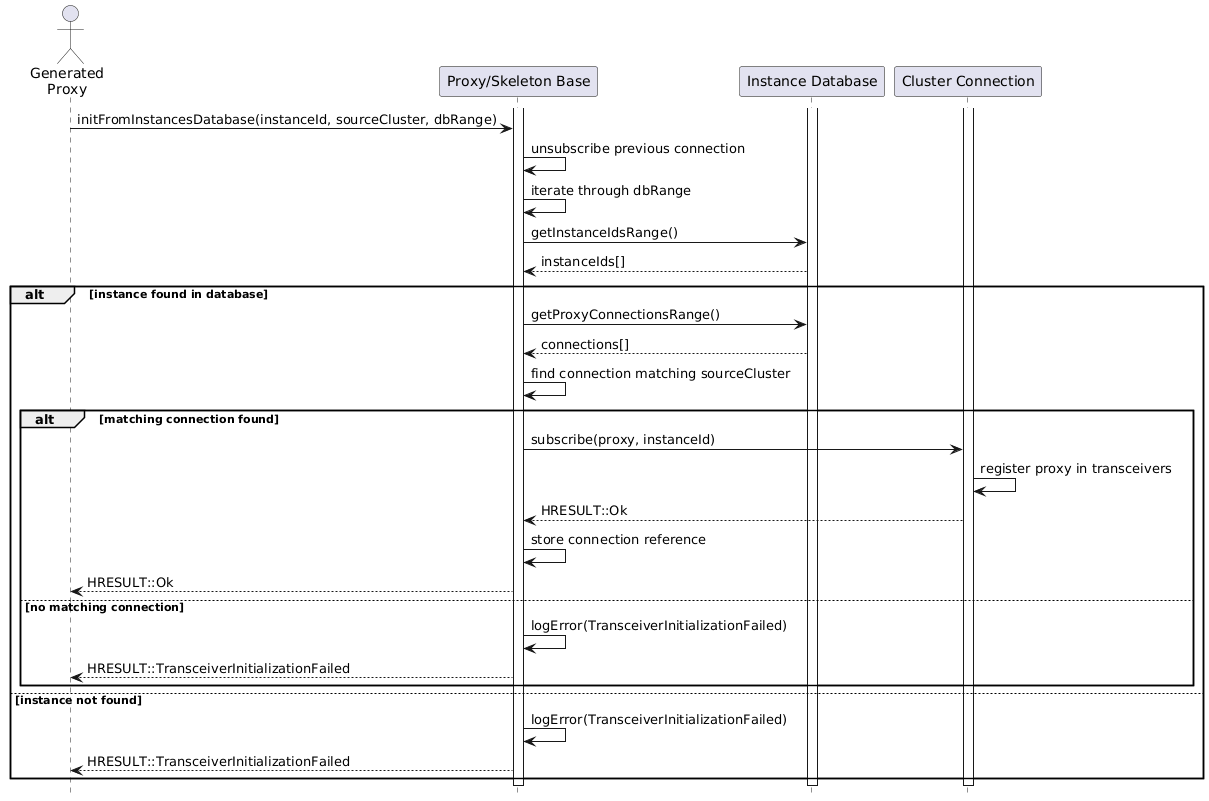

Service initialization proxy sequence

Skeleton Initialization

' ******************************************************************************* ' Copyright (c) 2026 BMW AG ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 ' ******************************************************************************* @startuml hide footbox actor "Generated\nSkeleton" as generated_skeleton participant "Proxy/Skeleton Base" as proxy_skeleton_base_unit participant "Instance Database" as instance_database_unit participant "Cluster Connection" as cluster_connection_unit activate proxy_skeleton_base_unit activate instance_database_unit activate cluster_connection_unit generated_skeleton -> proxy_skeleton_base_unit : init(instanceId) proxy_skeleton_base_unit -> proxy_skeleton_base_unit : validate state (must be uninitialized) proxy_skeleton_base_unit -> instance_database_unit : find instance configuration alt instance found with client connections instance_database_unit --> proxy_skeleton_base_unit : connections[] info loop for each connection proxy_skeleton_base_unit -> cluster_connection_unit : subscribe(skeleton, instanceId) cluster_connection_unit -> cluster_connection_unit : register skeleton in transceivers cluster_connection_unit --> proxy_skeleton_base_unit : HRESULT::Ok end proxy_skeleton_base_unit -> proxy_skeleton_base_unit : setState(initialized) proxy_skeleton_base_unit --> generated_skeleton : HRESULT::Ok else instance found without client connections instance_database_unit --> proxy_skeleton_base_unit : empty connections[] proxy_skeleton_base_unit -> proxy_skeleton_base_unit : logError(NoClientsAvailable) proxy_skeleton_base_unit --> generated_skeleton : HRESULT::NoClientsAvailable else instance not found instance_database_unit --> proxy_skeleton_base_unit : nullptr proxy_skeleton_base_unit -> proxy_skeleton_base_unit : logError(TransceiverInitializationFailed) proxy_skeleton_base_unit --> generated_skeleton : HRESULT::TransceiverInitializationFailed end deactivate proxy_skeleton_base_unit deactivate instance_database_unit deactivate cluster_connection_unit @enduml

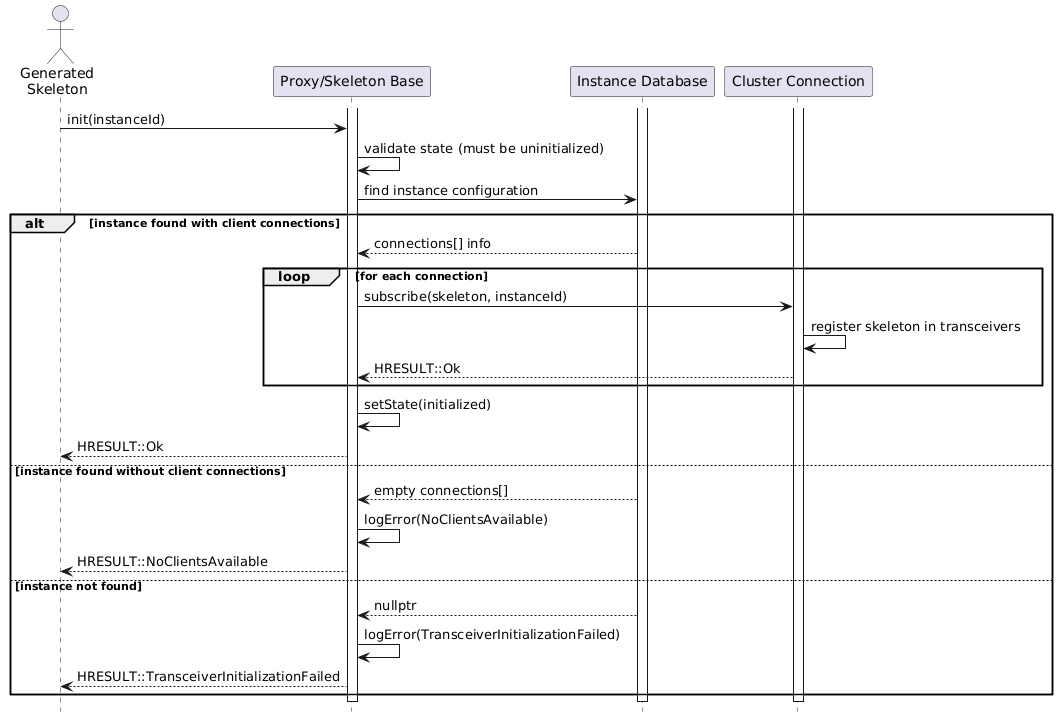

Service initialization skeleton sequence
